Gridworld navigation

Read this page as the thin-support IRL stress test. The goal is not just to see who fits the visited path, but who behaves sensibly where demonstrations are sparse or absent.

Gridworld navigation is the home turf of the maximum-entropy IRL tradition of Ziebart’s MaxEnt and its descendants, so this page weights the roster toward IRL methods. NFXP, CCP, MPEC, and UFXP run as the structural contrast. The environment also supplies a stress the bus engine does not. Every trajectory starts at the same corner and walks toward the goal, so states off that path are visited rarely or never. Methods that invert state-by-state choice frequencies feel that thinness. Methods that share strength through features or networks do not.

The data-generating process

States are cells of an \(N \times N\) grid indexed \(s = \mathrm{row} \cdot N + \mathrm{col}\), with five actions (left, right, up, down, stay), deterministic moves, and an absorbing goal at the bottom-right corner. The reward has three parts: a per-step penalty, a terminal bonus when the chosen move reaches the goal, and a shaping term in the Manhattan distance \(d(s)\) to the goal:

\[ u_\theta(s, a) = \theta_{\mathrm{step}}\, \mathbf{1}\{s \neq s_{\mathrm{goal}}\} + \theta_{\mathrm{goal}}\, \mathbf{1}\{s'(s, a) = s_{\mathrm{goal}}\} - \theta_{\mathrm{dist}}\, \frac{d(s)}{2N}, \]

with \(\theta_{\mathrm{step}} = -0.1\), \(\theta_{\mathrm{goal}} = 10\), \(\theta_{\mathrm{dist}} = 0.1\). The agent discounts at \(\beta\) and faces i.i.d. logit taste shocks (scale \(\sigma = 1\)), so behavior solves the soft Bellman equation

\[ V(s) = \log \sum_{a} \exp\Bigl(u_\theta(s,a) + \beta\, \mathbb{E}\bigl[V(s') \mid s,a\bigr]\Bigr), \qquad \pi^*(a \mid s) \propto \exp\Bigl(u_\theta(s,a) + \beta\, \mathbb{E}\bigl[V(s') \mid s,a\bigr]\Bigr), \]

and every trajectory starts at the top-left corner (state 0). The figure shows the resulting paths climbing the state index toward the absorbing goal and the value function rising with proximity to it. The horizon is deliberately short (20 periods) because the goal is absorbing: once there, an agent generates no further information.

The study uses an 8 by 8 grid, 5 actions, 500 agents, 20 periods, and 3 replications. The true reward weights are \([-0.1,\;10.0,\;0.1]\). Only one action-contrast direction is identified from choices, because the distance and step terms are mostly state-level features. That weak support is the point of the study.

Estimators and data

Estimator	Family	Uses transitions \(P(s'\mid s,a)\)	Transferable reward	Standard errors
MCE-IRL	behavioral	yes	yes	no
Neural MCE-IRL	behavioral	yes	yes	no
AIRL	behavioral	yes	yes	no
GLADIUS	behavioral	yes	yes	no
NFXP	structural	yes	yes	yes
CCP	structural	yes	yes	yes

Uses transitions is whether the estimator reads the transition kernel; model-free learners do not. Transferable reward is whether it recovers a reward that re-solves under a counterfactual. Standard errors is whether it returns inference. The last two are read from the run.

Results

Estimator	Family	Ran	Conv	Policy TV	Time (s)
MCE-IRL	behavioral	3/3	0/3	0.3632	251.1
Neural MCE-IRL	behavioral	3/3	3/3	0.3986	11.1
AIRL	behavioral	3/3	0/3	0.6152	113.7
GLADIUS	behavioral	3/3	3/3	0.2208	25.6
NFXP	structural	3/3	3/3	0.0004	12.0
CCP	structural	3/3	3/3	0.0081	3.1

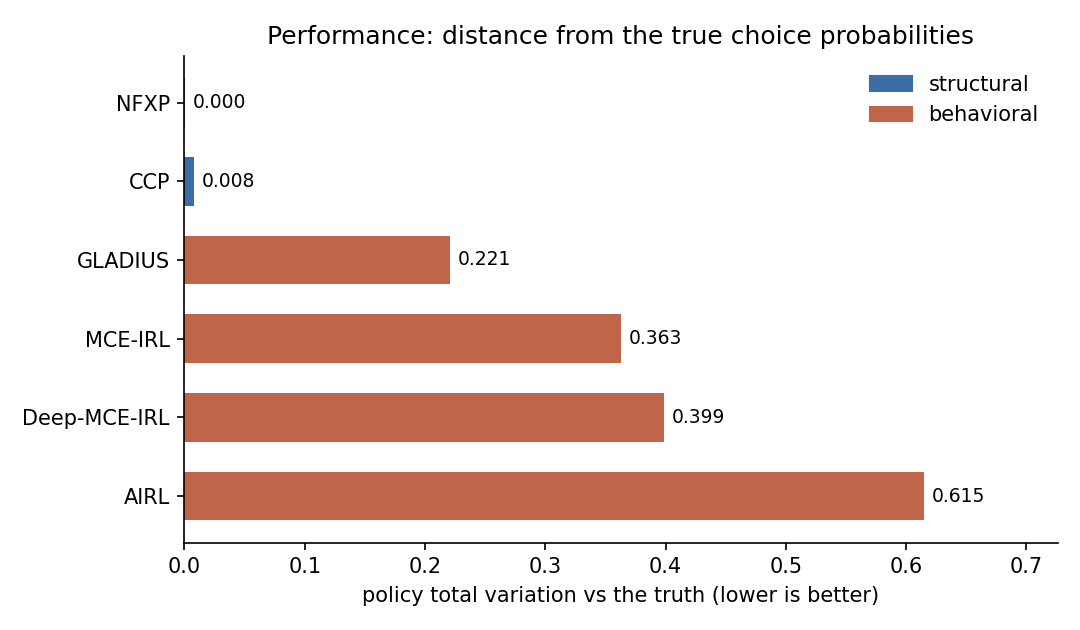

Policy TV is the distance between estimated and true choice probabilities, lower is better. Conv is the estimator’s own convergence indicator. A cautious estimator can report False while the recovered policy is accurate.

The structural rows match behavior almost perfectly, but their parameters are not separately identified here, so the parameter columns are omitted. The raw feature design has full rank, while the action-contrast design has rank 1. The step-penalty and distance features take the same value for every action at a state, so they cancel out of every choice probability. The regret columns are omitted for the same reason, because transferring an unidentified reward is not a meaningful exercise. The lesson is to check the rank of the action-differenced features before estimating.

Scaling

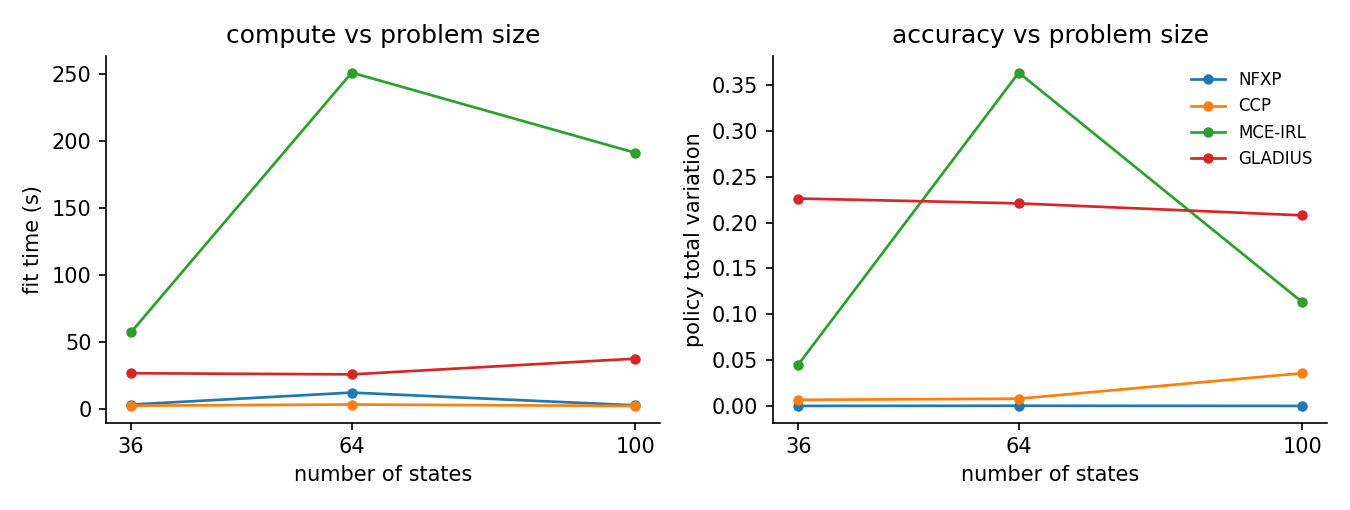

The same study at three grid sizes (36, 64, 100 states). Each line is one estimator: fit time on the left, policy total variation on the right. The structural rows track behavior closely across sizes. The compute lines reflect fixed overhead as much as problem size at this scale, so the time curves need not rise cleanly with the state count. Policy total variation is the right scorecard here because the reward parameters are not separately identified on this grid.

Reward and structure

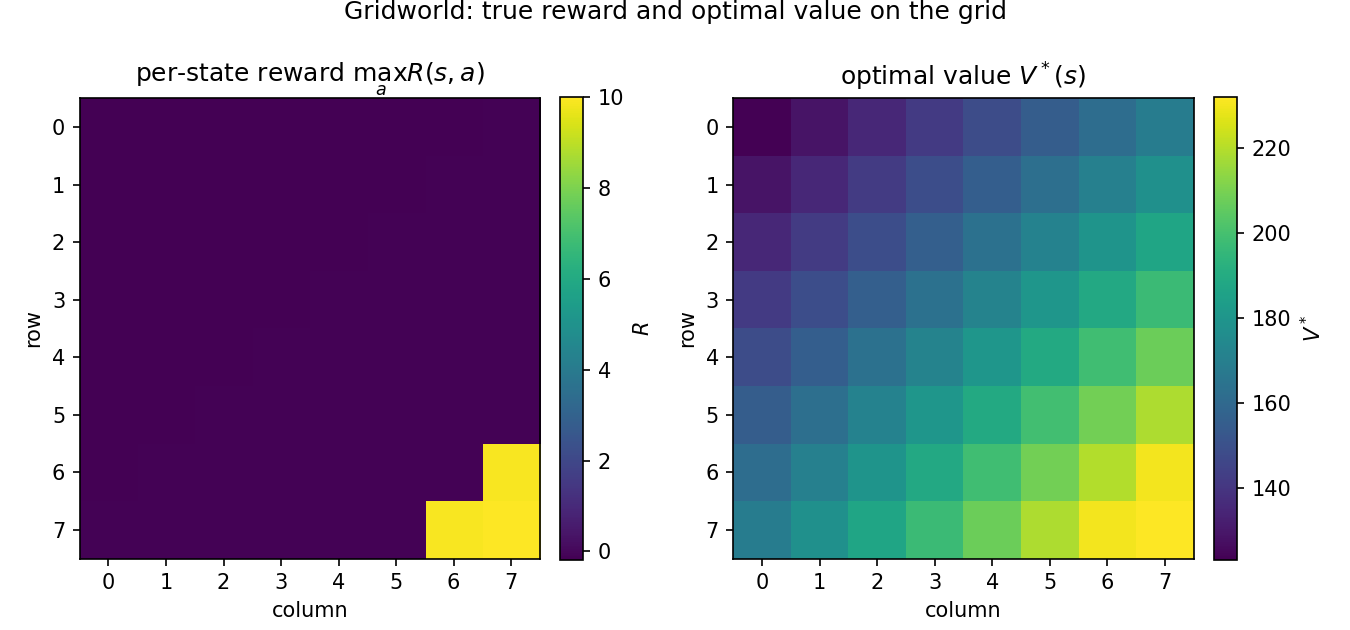

The reward and the optimal value lie on the actual grid. The left panel is the best move’s reward at each cell. The right panel is \(V^*(s)\). Both rise toward the absorbing goal at the bottom-right corner, which is the geometry the navigation problem is built on.

Notes per estimator

MCE-IRL. Two of its three reward directions, the state-only step and distance features, are unidentified here. Its gradient ascent can drift along them, and in one replication of three the policy collapsed. Read the per-rep records, not just the mean.

Reproduce

python scripts/sim_taxi_gridworld.py                 # run + write JSON
python scripts/sim_taxi_gridworld.py --page          # regenerate this page
python scripts/sim_taxi_gridworld.py --verify        # re-derive the table from JSON

Results file: validation/results/sim_taxi_gridworld.json.

Not shown on this page: SEES (its spline value basis is built for an ordered 1-D state index. A 2-D grid breaks that geometry, so running it here would be misspecification by construction); MPEC, UFXP, NNES (Other-tier structural estimators; NFXP and CCP carry the structural contrast here, and the full structural roster runs on the bus engine and fleet pages); TD-CCP (core, but shown on the bus engine study; the deterministic grid does not exercise its transition-free estimation); MaxEnt-IRL, IQ-Learn, f-IRL, BC (trajectory MaxEnt, inverse soft-Q, state-marginal, and behavioral-cloning baselines; not part of the core roster); MMP, GAIL, GCL, DeepMaxEnt-IRL, Bayesian-IRL (research code or too slow; not benchmarked in this study).
